Infrared Detectors
- Detector Type: Amorphous silicon uncooled infrared focal plane
- Resolution: 384×288
- Pixel Size: 12μm
- Wavelength Coverage: 8~14μm
- NEDT: ＜50mk (50Hz, F/1, 300K) TFPA 25°C (±5°C)
- Frame Rate: 50Hz
Infrared Objective
- Focus Method: Manual focus
- F Coefficient: 1.0
- Effective Imaging Surface: Φ8.2mm / Φ9.6mm
- Focal Length: 25mm / 35mm
- Field of View:
- 13.1°×9.9° (25mm)
- 10.7°×8.0° (35mm)
- Focus Range:
Eyepiece
- Focal Length: 20.8mm
- Exit Pupil Distance: 32mm
- Exit Pupil Diameter: 8mm
- Diopter Adjustment: ±4SD
- Apparent Magnification: 12X
Monitor
- Display Screen Type: OLED
- Resolution: 1024×768
- Display Size: 0.4 inches
System Functions
- Electronic Zoom: 1×/2×/4×/8×
- Palette Options: White hot, black hot, fire hot, rainbow, iron red, cold color
- Picture-in-Picture: Supported
- Photo and Video: Supported
- Hot Spot Tracking: Supported
- Language: Chinese / English
Detection Distance (Infrared Objective)
- 25mm:
- Character: ≤1181m
- Vehicle: ≤3125m
- 35mm:
- Character: ≤1653m
- Vehicle: ≤4375m
Storage
- Built-in Storage: 16G EMMC
- Image Format: JPG/MP4

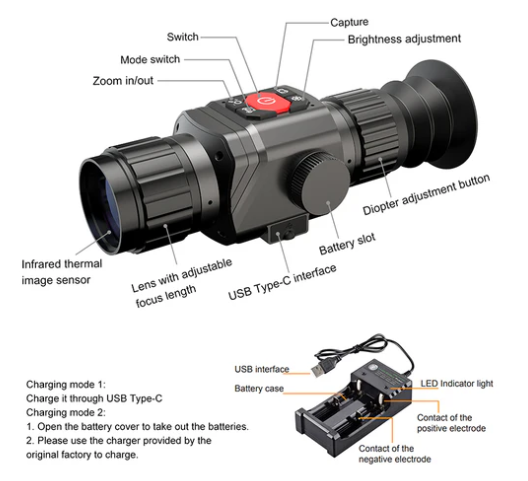

Interface
- USB Interface: TYPE-C (export pictures and battery charging)
Power Supply
- Battery: 2000mAh (battery model 18500)
- Machine Power Consumption: ≤1.6W
- Working Hours: ≤4 hours
Working/Storage Environment
- Operating Temperature: -20℃ ~ +60℃
- Storage Temperature: -30℃ ~ +70℃
- Impact Strength: 600G IEC 68-2-29
- Protection Class: ≤IP66
Dimensions/Weight/ Recoil Rating
- Dimensions (Without Bracket): 200×68.9×62mm
- Weight (Without Bracket): 570g
- Recoil Rating: 600G
