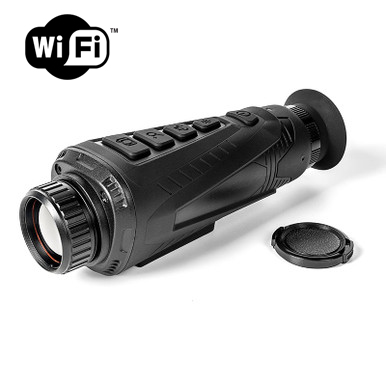

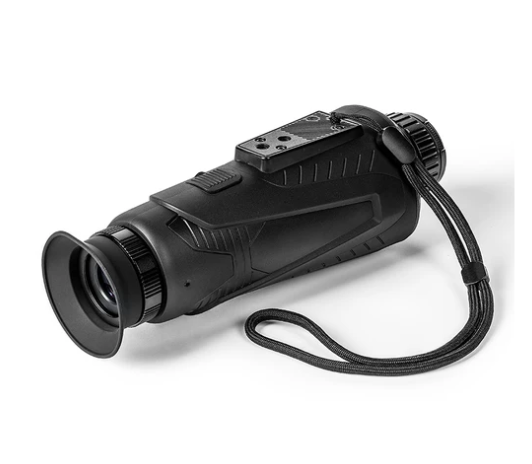

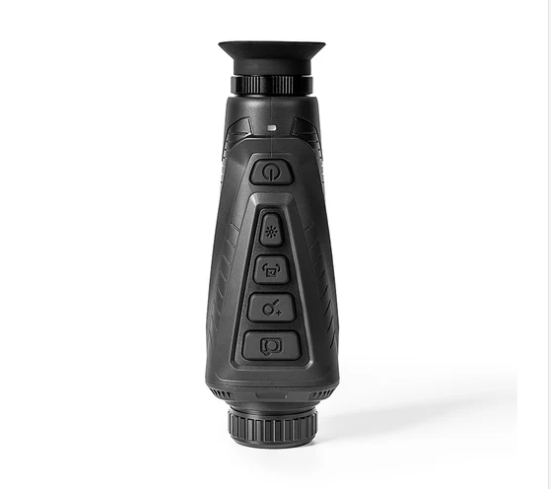

The HeatSight Optics TPM-A16 and TPM-A30 monoculars deliver cutting-edge thermal imaging technology with impressive resolution and versatility. Equipped with an uncooled infrared focal plane detector, the TPM-A16 offers 384×288 resolution, while the TPM-A30 steps up to 640×512 for even greater detail. Both devices feature manual focus and a 12μm pixel size for high precision, with detection ranges of up to 2500/3500 meters for vehicles.
Connectivity is a breeze thanks to built-in Wi-Fi for app control and a USB interface for viewing on external screens. Capture clear photos and videos directly on the monocular, with 16GB of internal memory for storage. Adjustable brightness, contrast, and multiple color palettes ensure a personalized viewing experience, while the OLED display and long battery life of up to 5 hours make it perfect for extended use in any environment. With robust construction and IP65 protection, the A16 and A30 are ready for tough outdoor adventures.
- Infrared Detector
- Detector Type: Amorphous silicon uncooled infrared focal plane
- A16 Resolution: 384×288
- A30 Resolution: 640×512
- Pixel Size: 12μm
- Operating Band: 8~14μm
- Effective Imaging Surface: Φ8.2mm
- Performance (NEDT): ≤40mk @25°C, @F/1.0
- Frame Rate: 50Hz
- Infrared Objective Lens
- Focus Mode: Manual focusing
- F Coefficient: 1.0
- Focal Length: 35mm (HT-A16)
- Field Angle: 7.5°×5.7° (35mm)
- Focusing Range: ＞ 1.0m
- Eyepiece
- Focal Distance: 16mm
- Pupil Distance: 23mm
- Pupil Diameter: 6mm
- Visual Adjustment: -6D~4D
- Apparent Magnification: 16.0X
- Display
- Type: OLED
- Resolution: 1024×768
- Screen Size: 0.39 inch
- System Functions
- Electron Doubling: 1x/2x/4x/8x
- Color Palette: White hot, Black hot, Fire hot, Rainbow, Iron red, Cold color
- Brightness Adjustment: 1-10 levels
- Contrast Ratio Adjustment: 1-10 levels
- Image Detail Mode: 2 types, 5 levels
- Photo Taking: Supported
- Camera Shooting: Supported
- Picture in Picture: Supported
- CVBS: Supported
- Wi-Fi: Supported
- Hotspot Tracking: Supported
- Language: Chinese, English, Simplified Chinese, Traditional, Russian, Indonesian
- Standby Mode: Supported
- Laser Lamp: Supported
- Lighting Lamp: Supported
- Detection Distance
- Infrared Objective Lens: 25mm, 35mm
- Character: ≤1667m (25mm), ≤2333m (35mm)
- Boar: ≤1471m (25mm), ≤2059m (35mm)
- Vehicles: ≤2501m (25mm), ≤3500m (35mm)
- Identification Distance
- Character: ≤416m (25mm), ≤583m (35mm)
- Boar: ≤367m (25mm), ≤515m (35mm)
- Vehicles: ≤626m (25mm), ≤875m (35mm)
- Storage
- Built-in Memory: 16G EMMC (usable space ~13.8G)
- Image Format: JPG
- Video Format: MP4
- Interface
- CVBS Output: Supported, SMA base interface
- USB Interface: TYPE-C (for pictures, videos, battery charging)
- Power Supply
- Battery: Non-removable rechargeable lithium, 18650/3200mAh
- Overall Power: ≤1.8W
- Endurance Time: ≤5 hours
- Operating/Storage Environment
- Operating Temperature: -20℃ ~ +60℃
- Storage Temperature: -30℃ ~ +70℃
- Impact Resistance: ≤30g
- Protection Level: IP65
- Dimensions/Weight
- Overall Dimension: 1876767mm (25mm), 1986767mm (35mm)
- Weight: 500g
