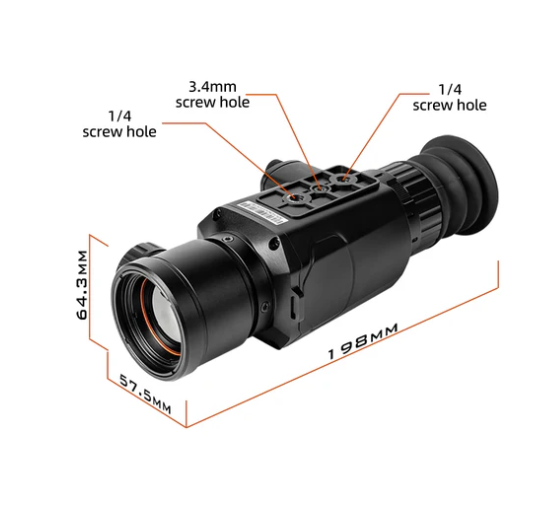

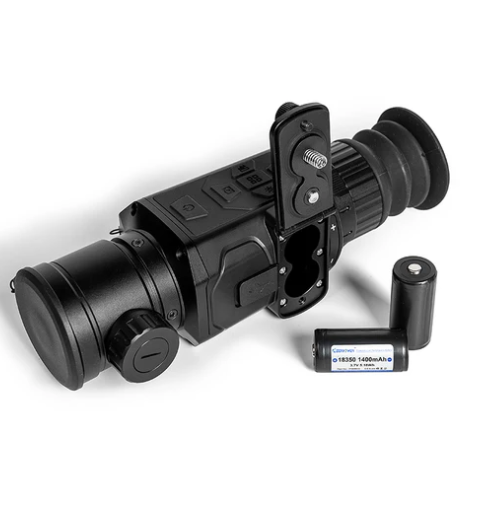

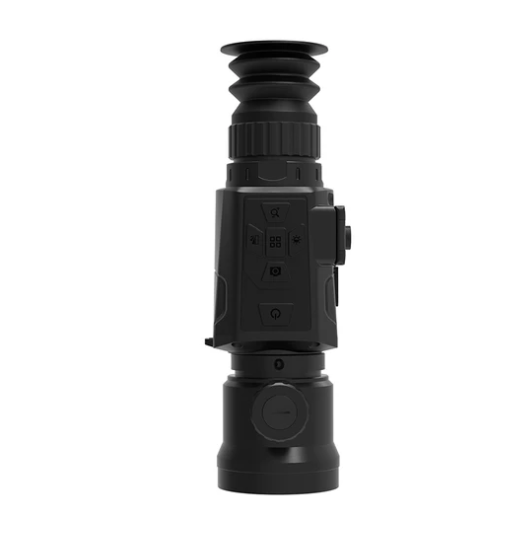

Digital Zoom: 1-8x Resolution: 640x512 The HeatSight Optics TPM-640 35mm Thermal Imaging Scope is a cutting-edge tool designed for the serious hunter and tactical professional. Engineered with precision and clarity in mind, the TPM-6 combines advanced thermal imaging technology with robust construction to provide unparalleled performance in the field. Key Features:
High-Resolution Imaging: The 640x512 resolution ensures crisp and clear thermal images, allowing you to detect and identify targets with ease.
35mm Lens: The 35mm objective lens provides a balanced field of view and excellent detection range, making it ideal for various applications.
Digital Zoom: With a 1-8x digital zoom, you can effortlessly adjust your view to focus on distant targets or scan a broader area.
Durable Construction: Built to withstand harsh environments, the TPM-6 is rugged and reliable, ensuring consistent performance in any condition.
User-Friendly Interface: The intuitive controls and clear display make it easy to operate, even in low-light conditions.
Versatile Applications: Perfect for hunting, surveillance, and tactical operations, the TPM-6 delivers top-tier thermal imaging capabilities.
Enhance your night vision and thermal detection capabilities with the HeatSight Optics TPM-640 35mm Thermal Imaging Scope. Whether you're tracking game or conducting a nighttime operation, the TPM-640 provides the clarity and precision you need to succeed.
Specs:
Thermal resolution
640×512
Detector type
Vanadium oxide uncooled infrared focal plane
Pixel size
12μm
Focus length / FOV
35mm
12.5°×10.0°
Work band
8~14μm
NETD
≤ 40mk@25℃,@F/1.0
Frame rate
≤50Hz
Focusing mode
Manual
Identification distance
Character (1.7mx0.5mx0.3m)
25mm: 590m
35mm: 826m
54mm: 1275m
75mm: 1771m
Vehicle (4.5mx2.0mx1.5m)
25mm: 1563m
35mm: 2188m
54mm: 3375m
75mm: 4688m
Detection range
Character (1.7mx0.5mx0.3m)
25mm: 2361m
35mm: 3306m
54mm: 5100m
75mm: 7083m
Vehicle (4.5mx2.0mx1.5m)
25mm: 6250m
35mm: 8750m
54mm: 13500m
75mm: 18750m
Display screen type
OLED
Resolution ratio
1440×1080
Display size
0.39 inches
Electronic zoom
1× / 2× / 4× / 8×
Diopter regulation
±5SD
Palette
White hot
Black hot
Fire hot
Rainbow
Iron red
Cold color
Hot point track
Supported
Picture in picture
Supported
Language
Chinese
Traditional Chinese
English
Russian
German
Capacity
Built-in 16G EMMC (The system takes up some space and it is 13.8G actually)
