Price: $1,399.00
On sale! Regular price: $1,599.00
SKU: TPMA01
| Specification | Value |
|---|---|
| Sensor Resolution | 640x512 |
| Sensor Type | Uncooled VOx (vanadium oxide) microbolometer |
| Pixel Pitch | 12 micron |
| NETD (Thermal Sensitivity) | <=40mK @25°C |
| Refresh Rate | 50Hz |
| Objective Lens | 50mm |
| Laser Rangefinder | 10m to 1200m |
| Detection Range | 2600 meters |
| Identification Range | 650 meters |
| Display | 0.39 inch OLED, 1024x768 |
| Electronic Zoom | 1x to 8x |
| Ingress Protection | IP67 rated |
| Recoil Rating | 1200G |
| Battery | 18650 rechargeable, 9+ hours runtime |
| Internal Storage | 16GB |
| Weight | 30 oz |

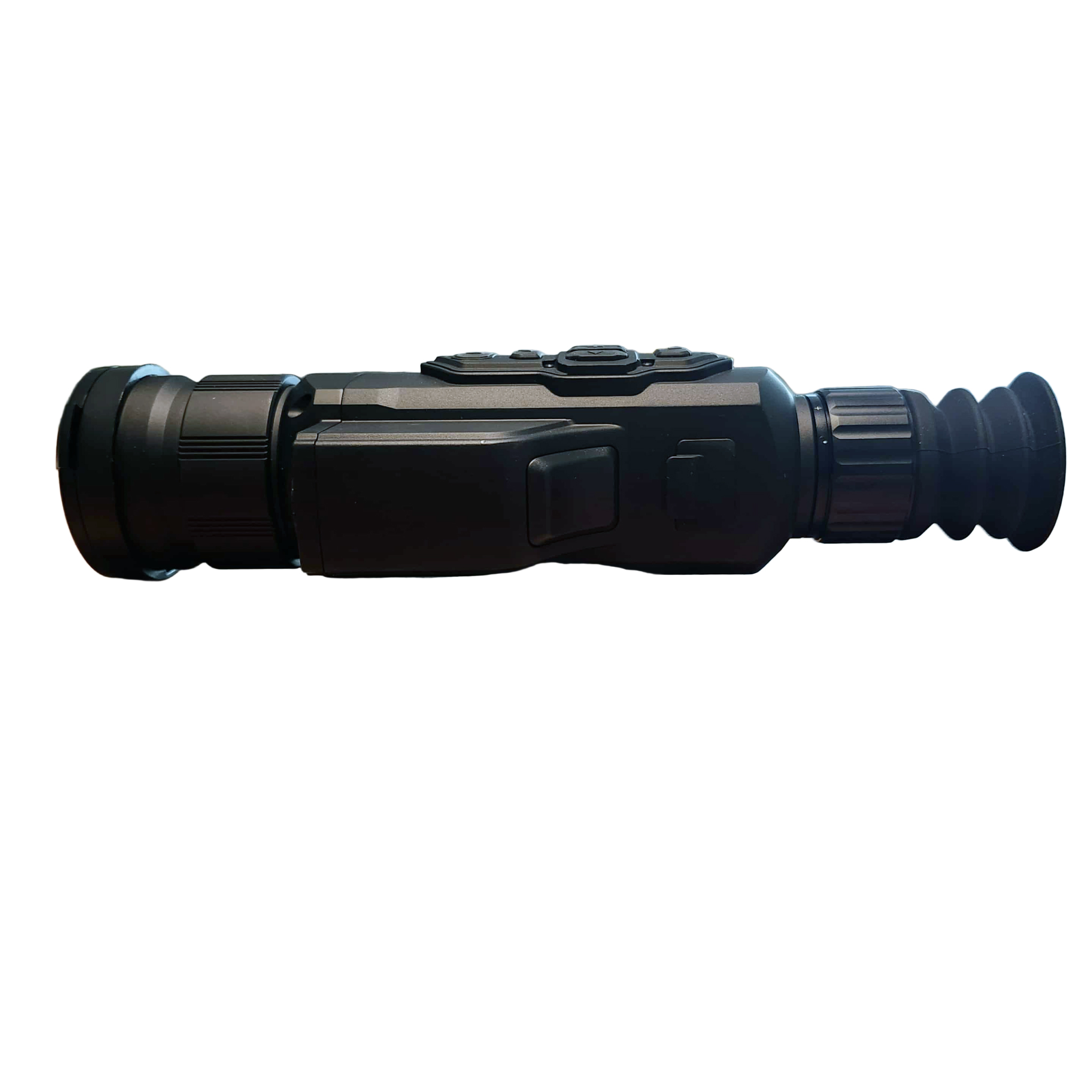

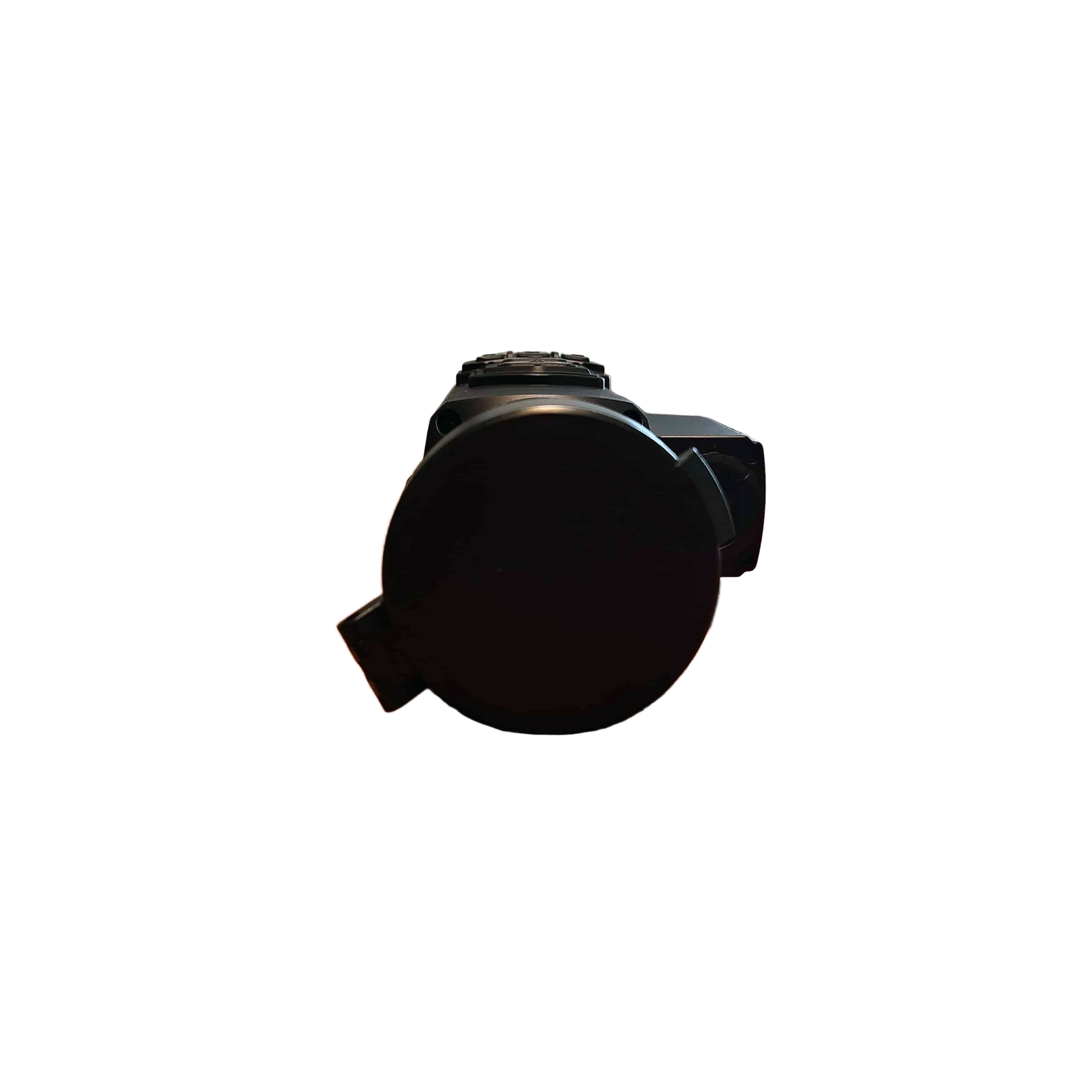

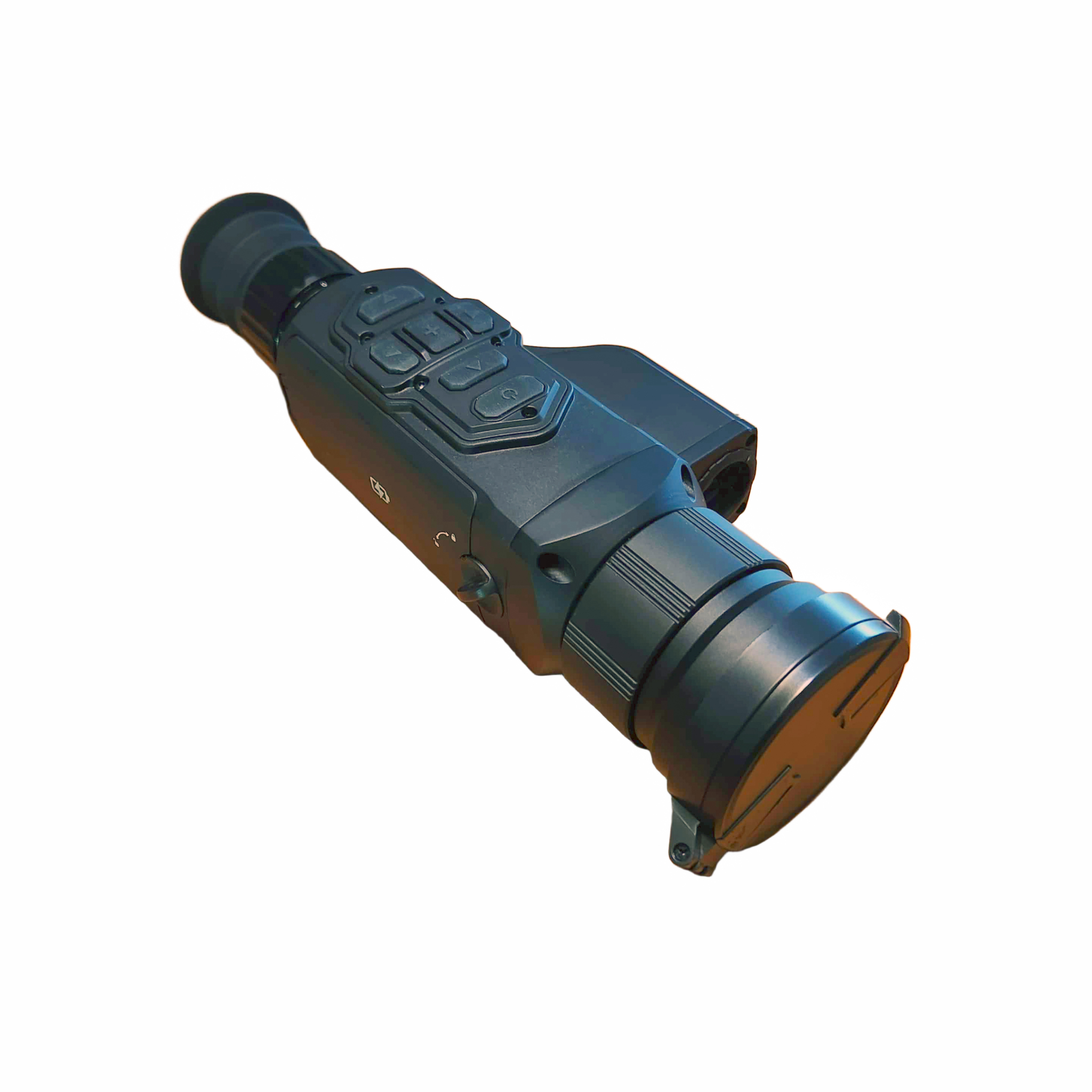

HeatSight Thermal Imaging Scope – Advanced Precision and Long Range Performance
Engineered for reliability and clarity in any environment, this high performance thermal imaging scope delivers strong detection capability, rugged durability, and advanced imaging features for serious users.
Available in 640×512 thermal resolution, this model uses a 12μm VOx detector for sharp thermal contrast and detailed target recognition. With a 50Hz refresh rate, the image stays smooth and responsive, even on moving targets.
The scope delivers long range performance with detection out to 2600 meters and identification up to 650 meters, depending on the model. Precision optics and manual focus provide clear imaging from close range to distance.
A built in laser rangefinder measures distances from 10m to 1200m with ±2m accuracy, giving reliable data in the field.
The 0.39 inch OLED display with 1024×768 resolution provides crisp visuals. Multiple color palettes are available including White Hot, Black Hot, Fire Hot, Rainbow, and Iron Red. Features like picture in picture, 1x to 8x electronic zoom, and hotspot tracking improve target awareness.
Powered by two 18650 rechargeable batteries, the unit delivers 9 or more hours of runtime. The housing is rated IP67 waterproof and built to handle up to 1200G recoil, making it suitable for harsh environments.
Additional features include:
The unit measures 268.9 × 91 × 64.3 mm and weighs 868g without batteries, offering a compact and durable design built for demanding use.
Thermal resolution 640×512 (A01-0650L)
Pixel size | 12μm |
Focus length/Field angle 50mm 8.8°×7.0°
Magnification 2.8
Close-up range | 1m-∞ | 5m-∞
Detection Range(Target:1.7mx0.5m) 2600m
Identification Range(Target:1.7mx0.5m) 650m
NETD ≤40mk @25°C,F#1.0
Work band | 8~14μm
LRF Measuring Range | 10m~1200m(905nm)
LRF Ranging Accuracy | ±2m
Frame rate | 50Hz
Focusing mode | Manual
Eyepiece | Manual
Eye relief | 48mm
Diopter adjustment | -5 SD~+5 SD
Display
Type | OLED
Resolution | 1024×768
Size | 0.39 inch
Interface |
Language | English,Chinese
Electronic zoom | 1×/2×/4×/8×
Color palettes | White hot, Black hot, Fire hot, Rainbow, Iron red
Photo/Record | Supported
Picture in picture | Supported
WIFI/CVBS | Supported
Capacity | Built-in 16G EMMC(The system takes up some space and it is 13.8G actually)
Hotspot Tracking | Supported
recording | Supported
Image/video format | JPG/MP4
USB interface | Charging/export image and video
USB | Supported
Detachable rechargeable lithium battery | 2*18650/3200mAH
Operating time | ≥9h
Work temperature | -40℃ ~ 60℃,24H
Storage temperature | -40℃～65℃
Impact | 1200G
Protection grade | IP67
Product size | 268.9*91*64.3mm
Product weight | 868g (Without batteries)
