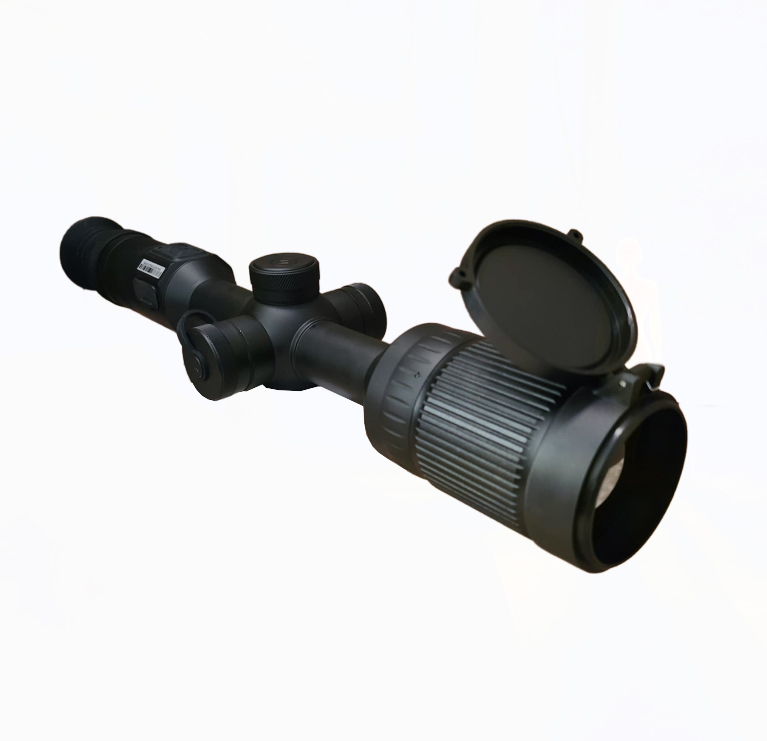

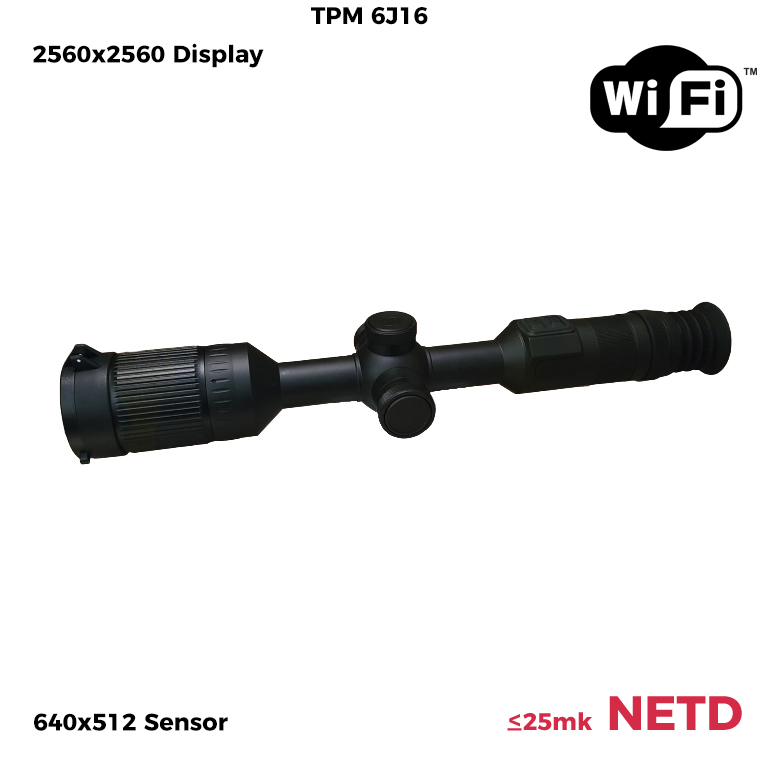

HeatSight Optics TPM-6J16 640 54mm Thermal Imaging Scope
Model: TPM-6
Lens: 54mm
Base Mag: 3x
Digital Zoom: 1-8x
Resolution: 640x512
Screen resolution: 2560x2560
Specifications:
Infrared
- Detector Type: Vanadium oxide uncooled infrared focal plane
- Resolution: 384x288 / 640x512
- Pixel Size: 17μm / 12μm
- Focal Length: 54mm
- Viewing Angle: 10.7° x 8.2°
- Operating Band: 8-14μm
- NETD: ≤25mK @ 25℃, F/1.0
- Frame Rate: ≤50Hz
- Focusing Mode: Manual
Detection Distance
- For Characters (1.7m x 0.5m x 0.3m): 2550m
- For Vehicles (5.5m x 2.0m x 1.5m): 6750m
Identification Distance
- For Characters (1.7m x 0.5m x 0.3m): 638m
- For Vehicles (4.5m x 2.0m x 1.5m): 1688m
Display
- Screen Type: OLED
- Resolution: 2560x2560
- Screen Size: 1.03 inches
- Electronic Magnification: 1X, 2X, 4X, 8X
- Diopter Adjustment: ±5SD
- Color Palettes: White heat, black heat, fiery, rainbow, iron red, cold color
- Hot Track: Supported
- Picture-in-Picture Mode: Supported
Memory
- Storage Capacity: 16GB EMMC (usable 13.8GB)
- Shooting & Video Recording: Supported
- Microphone: Supported
- File Formats: JPG / MP4
Interface
- USB Interface: Charging & exporting pictures/videos
- Wi-Fi Hotspot: Supported
- App Compatibility: iOS 11+ / Android 7.0+
Power Supply
- Battery Type: Detachable rechargeable lithium battery (3500mAh, model 18650)
- Backup Battery: Built-in 3500mAh for uninterrupted power during battery replacement
General Technical Indicators
- Power Consumption: ≤1.8W
- Battery Life: ≥7.5 hours
- Operating Temperature: -20℃ to +60℃
- Storage Temperature: -30℃ to +70℃
- Impact Resistance: ≤6000J
- Protection Grade: IP66
Size/Weight
- Dimensions: 419 x 104 x 70mm
- Weight: 1035g
Warnings:
- Do not overcharge or discharge batteries.
- Avoid exposing to extreme heat or water.
- Ensure proper handling of the scope and lithium batteries before use.
